How to Identify Between Tubeless Tyre and Tube Type Tyres

identify Tubeless Tyre and Tube Tyre

Have you ever found yourself in a situation where you’re standing on the road with a tyre wondering whether it’s a tubeless or tube-type tyre? The confusion can be real. Don’t worry we’ve got your back! In this guide, we’ll help you clear up the confusion and easily determine whether your tire is tubeless or tube-type. This knowledge isn’t just useful, for maintenance. Can also be a game changer in unexpected roadside emergencies. Additionally, it will assist you in communicating with mechanics when you need to fix any tyre issues or make warranty claims.

Imagine this scenario; you’re staring at your tyre and wondering if it’s tubeless or tube tyre. Let’s dive into a guide that not only clears up the confusion but also empowers you for those unexpected moments on the road. Knowing whether your tyre is tubeless or tube-type will enable you to communicate with roadside assistance or mechanics. It simplifies the repair process. Ensures resolution.

Visual Identification of Tyres

Begin with an inspection. Tubeless and tube tyres have differences, around the rim area. Imagine being able to take a look, at your tyre and instantly determine its construction type. We’ll show you how in our guide using to understand examples.

  1. Rim Construction:
    • Tubeless Tyres: If tyre is in a Puncture Situation Look closely at the rim. If there’s no tube standing out from it, and it appears as a single unit, your tyre is likely tubeless. Tubeless tyres have a more seamless connection between the tyre and rim.
    • Tube Tyres: In contrast, tube tyre typically have a tube visibly extending from the rim, connecting to the tyre. The separate tube is a key indicator of a tube tyre.
  2. Bead Area:
    • Tubeless Tyres: Examine the bead area, where the tyre contacts the rim. Tubeless tyre have a reinforced bead that creates an airtight seal with the rim. This design prevents air from escaping.
    • Tubed Tyres: Tubed tyres, on the other hand, usually have a softer bead without the reinforcement seen in tubeless tyre. The presence of a separate tube allows for a different type of connection.

Reading Sidewall Markings

If visual inspection leaves doubt about your tyre type, check the sidewall markings. Let’s decode the sidewall markings – that lot of information that holds the key to your tyre type. Let’s take an MRF Activa tubeless tyres for example, read the sidewall information and you see “TUBELESS” text on the sidewall. The presence of “TUBELESS” indicates it is tubeless, if such text is missing it is a tubed tyre. Keywords like “TUBELESS” are common indicators written on every tubeless tyre sidewall. Sidewall markings also provide other valuable details, such as tyre size, load index, tyre manufacturing date, and speed rating. While these may not directly indicate tube type, they contribute to your overall understanding of the tyre.

Valve Type Identification

Moving on to valves – the small but essential method to identify tyre type easily. Tubeless and tubed tyres have different valve designs. Here’s a simple way to identify them:

  1. Tubeless Tyres

Tubeless tyres have a metal or rubber valve directly mounted on the wheel rim. It’s usually shorter and sturdier. This design contributes to the airtight seal that characterizes tubeless tyre.

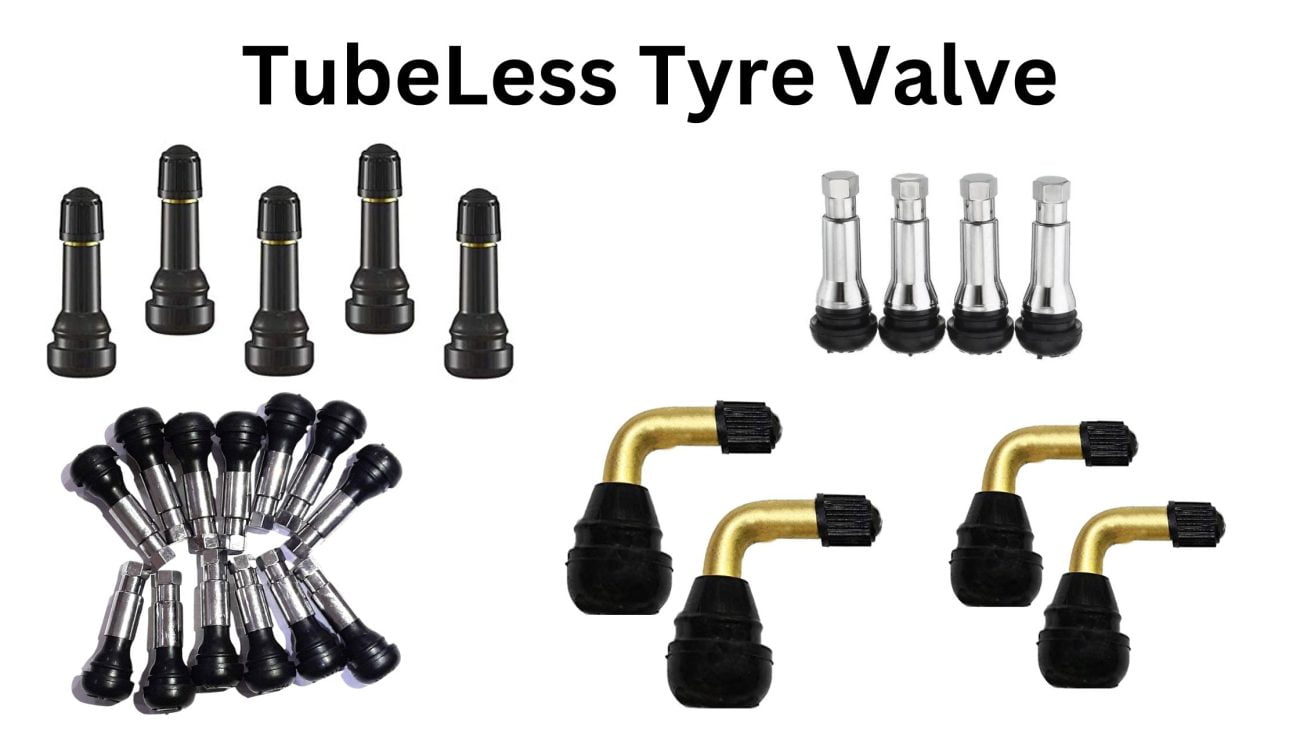

types of tubeless tyre valves
types of tubeless tyre valves

2. Tube Tyres:

Look for a longer, more flexible valve located within the rim. This valve is connected to the inner tube and might have an additional valve cap. The longer and more flexible design accommodates the tube’s presence.

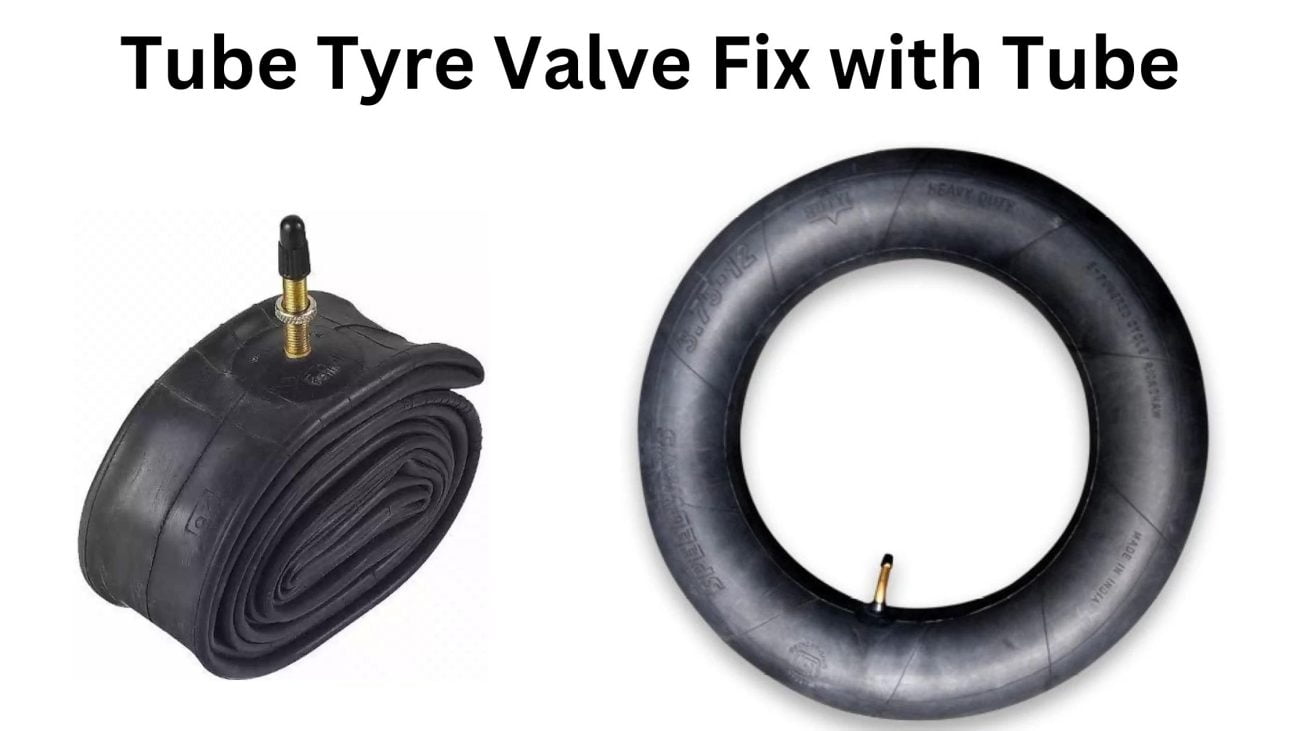

tube valve fix with tube
tube valve fix with tube

Examples of Tubeless Tyre and Tube Tyre Sidewall

Example 1: MRF Nylogrip Zapper 90/100-10 Tubeless Activa Tyre

Consider the MRF Nylogrip Zapper N4 90/100-10 53J Tubeless Activa Tyre you can see the below image of that tyre. The sidewall boldly displays the term “TUBELESS.” This clear inscription is your confirmation that the tyre is tubeless.

MRF Nylogrip Zapper 90/100-10 Tubeless Activa Tyre
MRF Nylogrip Zapper 90/100-10 Tubeless Activa Tyre

Now, let’s move on to another example that demonstrates the sidewall marking for a tube-type tyre.

Example 2: Ceat Milaze 2.75-18 Tube-Type Bike Tyre, Rear

Next, we have the Ceat Milaze 2.75-18 48P Tube-Type Bike Tyre, Rear. As you can see the sidewall image below, you may not find the term “TUBELESS“. so the tyre is tube type. Some brands have a mention Tube Type on the sidewall as well. But it does not need to be written on Tube type-tyre.

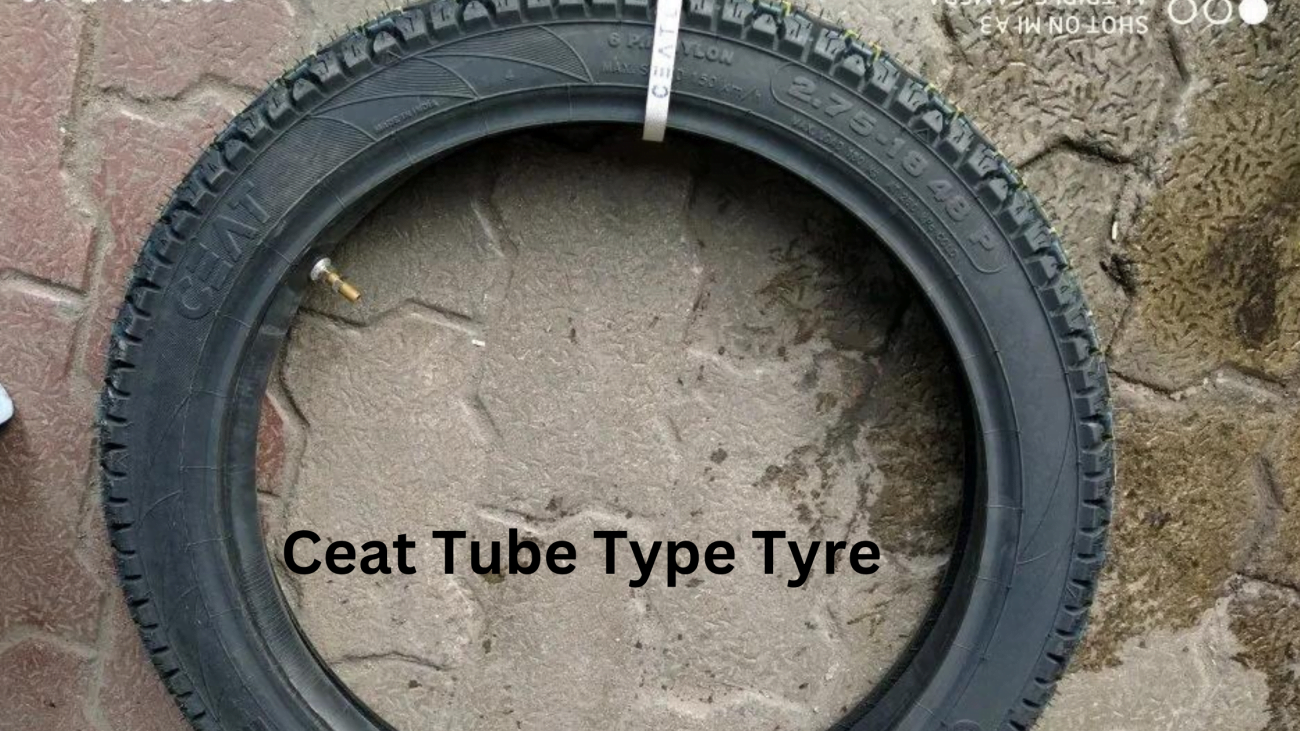

Ceat Milaze 2.75x18 Tube Type Tyre
Ceat Milaze 2.75×18 Tube Type Tyre

Easily Identify Tubeless or Tube Tyres

Easily identify tubeless or tube tyres on Indian vehicles with 3 visual differences: 1. Wheel Design– tubeless tyre uses Alloy Wheels, while tube tyres have mostly spoke wheels. 2. Sidewall Text – ‘TUBELESS’ indicates it’s tubeless, no text on tubed tyres. 3. Valve shape & size – tubeless tyres have short, metal valves, while tubed tyres have longer valves connected to the tube.


In conclusion, understanding your tyre type is like having a superpower of your vehicle. this knowledge is not just for experts but it’s a skill that helps you in real-life situations. Whether you’re stuck with a flat tyre or just want to keep things running smoothly, knowing if your tyre is tubeless or tubed is key.

We covered a bunch of ways to identify the tyre type: looking at the rim, checking the sidewall markings, and even looking at the valve. We used examples like the MRF Nylogrip Zapper N4 90/100-10 53J Tubeless Activa Tyre and the Ceat Milaze 2.75-18 48P Tube-Type Bike Tyre, Rear to show you how it’s done.

Why does it matter? Well, it helps you fix problems faster, avoids making things worse, and keeps you safer on the road. Remember, it’s okay if it takes a bit to get the hang of it. With time, you’ll be a pro at figuring out your tyre.
